Epoxy resin
Epoxy resin
Daicel’s cycloaliphatic epoxides are synthesized by the epoxidation reaction of peracetic acid.
Unlike Bisphenol A glycidyl ether epoxy, our cycloaliphatic epoxides do not contain chloride.
Additionally, since our resins are aliphatic, they have excellent UV stability and a low propensity to yellow at high temperatures.
Daicel’s oxidation technology
Daicel has developed various chemical compounds, including aliphatic epoxy resins, using oxidation reaction technology with peracetic acid.
Characteristics of Daicel’s products
- No chlorine content
- High heat resistance (high Tg)
- High cationic reactivity compared to glycidyl ether
- Low viscosity and high fluidity

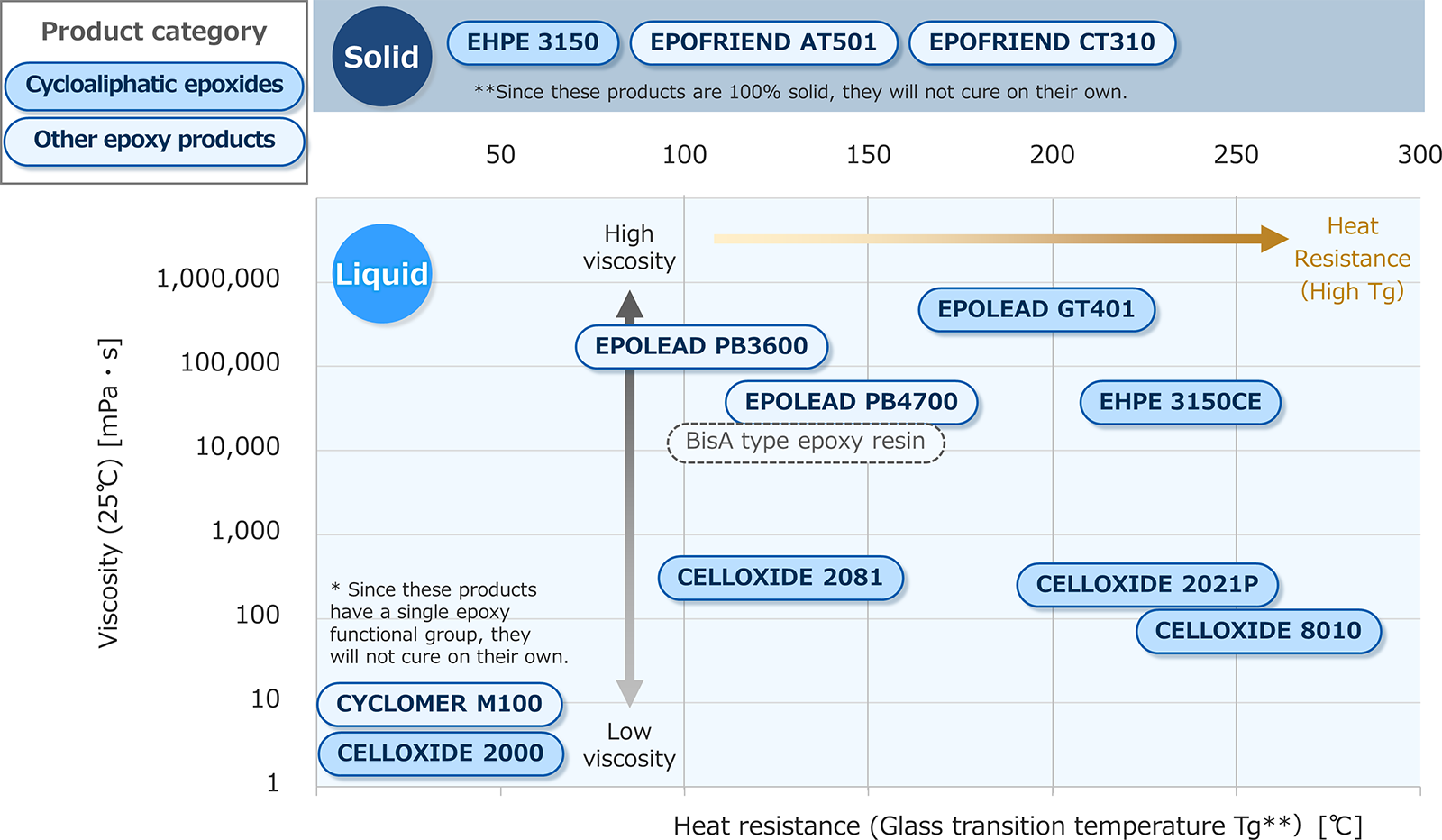

Epoxy resin products
Curing Condition : 100℃×2hr＋150℃×2hr
Cycloaliphatic epoxides
Click on the product name to see details.
wipe the screen to view more.
| Product | Category | Structural formula |
Appearance （r.t.） |
Viscosity [mPa・s] |
Epoxy equivalent [g/eq] |
Color (Pt-Co Units) |
|---|---|---|---|---|---|---|
| CELLOXIDE 2021P | Cycloaliphatic diepoxide |  |
Liquid | 240 （25℃） |
130 | 10 |
| CELLOXIDE 8010 | Cycloaliphatic diepoxide | non-disclosure | Liquid | 64 （25℃） |
100 | 5 |
| CELLOXIDE 2081 | Flexible cycloaliphatic diepoxide |  |
Liquid | 96 （45℃） |
200 | 30 |
| CELLOXIDE 2000 | Vinylcyclohexene monoepoxide |  |
Liquid | 2 （25℃） |
126 | 5 |
| EHPE 3150 | Multi-functional cycloaliphatic epoxy |  |
Solid (flake) |
― | 177 | 20 （25％ solution of acetone） |
| EHPE 3150CE | Diluted EHPE 3150 with cycloaliphatic epoxy resin |
― | Liquid | 44,400 （25℃） |
150 | 55 |
| EPOLEAD GT401 | Tetra-functional cycloaliphatic epoxide |  |
Liquid | 2,280 （70℃） |
220 | 60 |
The values provided above are typical and should not be considered as standard.
Other epoxy products
Click on the product name to see details.
wipe the screen to view more.
| Product | Category | Structural formula |
Appearance （r.t.） |
Viscosity [mPa・s] |
Epoxy equivalent [g/eq] |
Color (Pt-Co Units) |
|---|---|---|---|---|---|---|
| CYCLOMER M100 | Methacrylate containing cycloaliphatic epoxy group |
 |
Liquid | 9 （25℃） |
205 | 40 |
| EPOLEAD PB3600 | Epoxidized polybutadiene (Terminal group : OH) |
 |
Liquid | 29,000 （45℃） |
193 | 30 |
| EPOLEAD PB4700 | Epoxidized polybutadiene (Terminal group : H) |
 |
Liquid | 6,300 （45℃） |
165 | 15 |
| EPOFRIEND AT501 | Epoxidized thermoplastic elastomer |  |
Pellet | ― | 1,055 | ― |
| EPOFRIEND CT310 | Epoxidized thermoplastic elastomer |  |
Pellet | ― | 2,125 | ― |
The values provided above are typical and should not be considered as standard.
Epoxy products curing systems
Click on the product name to see details.
wipe the screen to view more.
| Product | Thermal cation |
UV cation |
Acid anhydride |
Amine | Phenol | Radical |
|---|---|---|---|---|---|---|
| CELLOXIDE 2021P | ++ | ++ | ++ | - | ++ | - |
| CELLOXIDE 8010 | +++ | +++ | ++ | - | ++ | - |
| CELLOXIDE 2081 | ++ | ++ | ++ | - | ++ | - |
| CELLOXIDE 2000 1） | N/A | N/A | N/A | N/A | N/A | N/A |
| EHPE 3150 | N/A2） | N/A2） | ++ | ++ | ++ | - |
| EHPE 3150CE | ++ | ++ | ++ | ++ | ++ | - |
| EPOLEAD GT401 | ++ | ++ | ++ | - | ++ | - |
| CYCLOMER M100 | ++ | ++ | ++ | - | ++ | ++ |
| EPOLEAD PB3600 | ++ | ++ | ++ | ++ | ++ | - |
| EPOLEAD PB4700 | ++ | ++ | ++ | ++ | ++ | - |
| EPOFRIEND AT501 | N/A2） | N/A2） | ++ | ++ | ++ | - |
| EPOFRIEND CT310 | N/A1） | N/A2） | ++ | ++ | ++ | - |
| BisA type epoxy resin | + | + | ++ | ++ | ++ | - |
+++:Excellent, ++:Good, +:Average, -:Poor, N/A:Not applicable
- Since this product has a single epoxy functional group, it will not cure on its own.
- Since these products are 100% solid, they will not cure on their own.
