High Performance FilmFlexible super-hard-coat film
Features
- High transparency
- High pencil hardness (3H – 8H) and continuous foldability
- Good abrasion resistance
Daicel’s flexible super-hard-coat films are hard but flexible.
While ensuring a high level of hardness, they are durable enough to withstand repeated bending in both in-fold and out-fold directions. This is why they are widely used as a cover film for foldable devices.

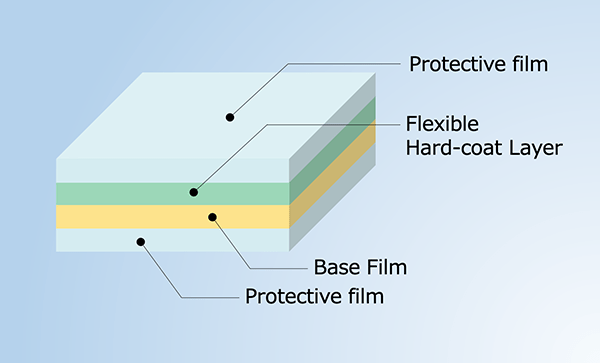

Structure
Characteristics
wipe the screen to view more.
| Products | Base film | Pencil hardness | Abrasion Resistance1） | Continuous Foldability2） | Data sheet | |
|---|---|---|---|---|---|---|
| In-folding | Out-folding | |||||
| SHB10E50 | PET 50μm |
3H | 20,000 times | 1.5mm | 3.0mm | Download |
| SHB20E50 | 4H | 2.0mm | 3.0mm | Download | ||
| SHB30E50 | 6H | 2.0mm | 3.0mm | Download | ||
| SHB40E50G6M | 8H | 2.0mm | 3.0mm | Download | ||
- Number of full strokes without scratching when rubbed back and forth with steel wool (#0000) at a force of 1 kgf/4 cm2.
- Smallest bending radius at which no cracking occurred in the hard coat layer after 200,000 times continuous folding test.
