High Performance FilmUV-resistant ITO-PET film
Features
- Resistant to degradation caused by ultraviolet (UV) rays.
- Low-resistivity grades (~80 Ω/sq.) are available.
- Pre-crystallized ITO film can be used immediately after as-received.
ITO films are transparent and conductive.
Using proprietary technology, a very thin film of a metal called ITO is deposited on the polymer substrate.
Daicel’s ITO film is available in a variety of thicknesses and surface resistivities on various PET substrates.
This product is characterized by excellent resistance to ultraviolet (UV) light and high transparency owing to the proprietary fabrication process.
The films are not visually discernable and any film pattern on the surface remains invisible, which is generally difficult to achieve in films with lower electronic resistance.
We process and optimize the ITO films using our proprietary equipment, so the pre-fabricated films can be used immediately after delivery.

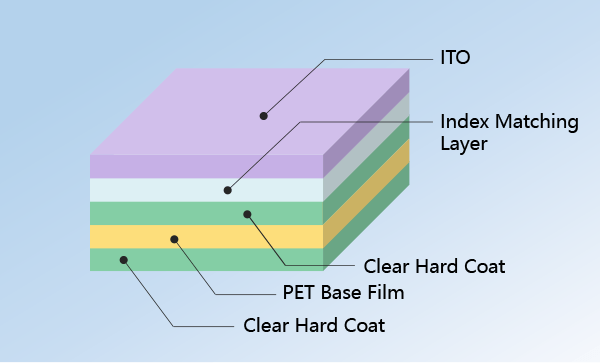

Structure
Characteristics
wipe the screen to view more.
| Product Name | Base Material | Film thickness (μm) |
Surface Resistivity (Ω/sq.) |
Total Light Transmittance (%) |
b* | Invisible characteristics | Remarks |
|---|---|---|---|---|---|---|---|
| GSA-A080 | PET | 100 | 80 | 89 | 2 | ◎ | Made to order |
| GSA-A0A5 | 100 | 150 | 89 | 1.8 | ◎ | Made to order | |
| GSA-A280 | 125 | 80 | 89 | 2 | ◎ | ||
| GSA-A2A5 | 125 | 150 | 89 | 1.8 | ◎ | ||
| GSA-A880 | 188 | 80 | 89 | 2 | ◎ | Made to order | |
| GSA-A8A5 | 188 | 150 | 89 | 1.8 | ◎ |
