High Performance FilmRelease film

Return to High Performance Films

Features

  • Silicone-free & Good releasability
  • Maintains releasability even at high processing temperatures
  • Little effect on the transfer surface because of its nano-order smoothness

Daicel’s silicon-free release films are designed to go on smoothly and peel off clean and neat.
They stably maintain their releasability at high temperatures and, because of their very smooth surface, they do not damage the characteristics of transferred features.
Customization is available upon request.

Structure

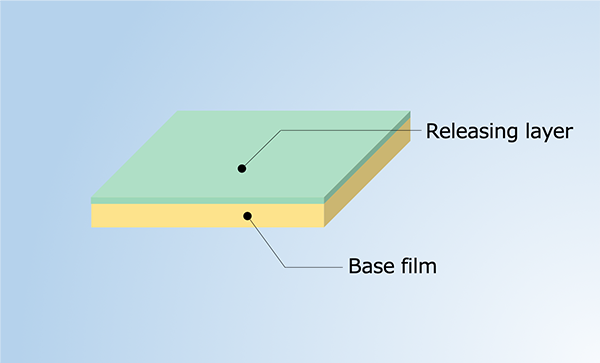

Single-sided coat

Structure:Single-sided coat

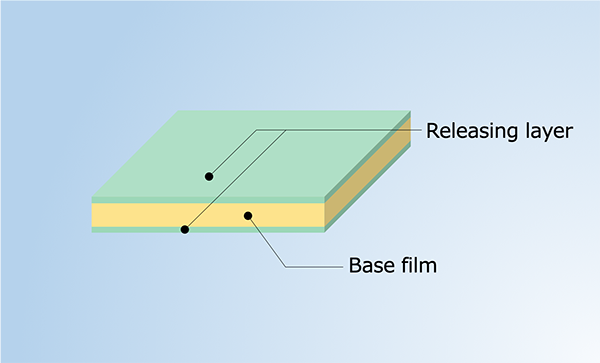

Double-sided coat

Structure:Double-sided coat

Characteristics

wipe the screen to view more.

Type Base film Water contact angle Peeling Force Heat Resistant Temperature Data Sheet
N-Type PET 100° from Epoxy Resin
15mN/mm
130~280℃ Download
W-Type 108° from Adhesive Tape
0.3N/25mm
90℃ Download
M-Type 66° from Epoxy Resin
0.7mN/mm
220℃ Download
