High Performance FilmShading film

Return to High Performance Films

Features

  • Blocks over 99.9999% of incidental light.
  • High blackness and low surface gloss reduce reflection of light.

Thanks to a proprietary surface design, Daicel’s shading films produce a high blackness.
In addition to their good shading property, they are thin in total thickness and have low surface glossiness, which has helped to downsize and improve the picture quality of compact camera units.

Structure

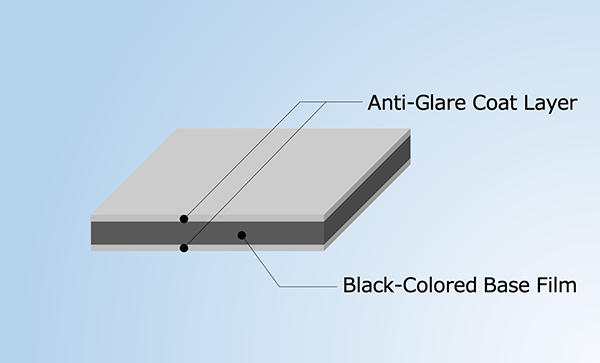

Standard grade

Structure:Standard grade

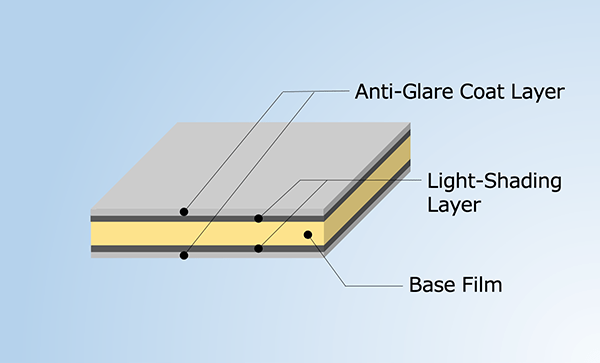

Heat-resistant grade

Structure:Heat-resistant grade

Characteristics

wipe the screen to view more.

Products Type Total thickness (µm) Optical density L* value 60° Gloss (%) Data Sheet
SB02-CT16 Standard 16 5.5 〜 6.2 14 ≦ 0.5 Download
BP22 Heat resistance 22 5.5 〜 6.2 14 ≦ 0.5 Download
