Provision of samples

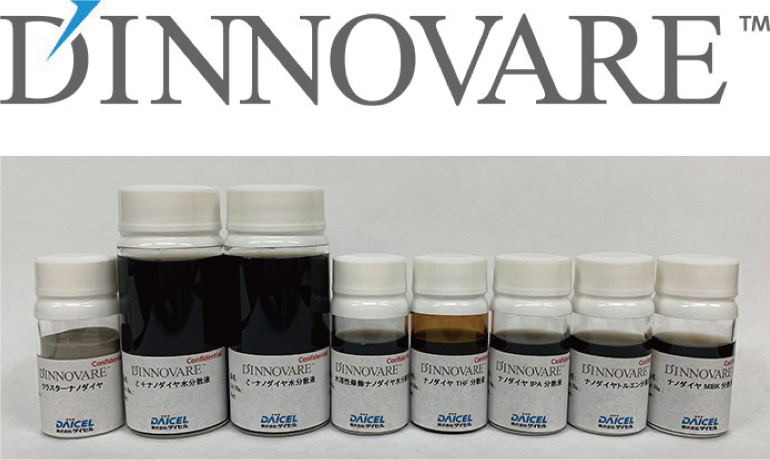

DINNOVARE™ is Daicel’s nanodiamond series. We provide not only aqueous dispersions but also nano-order nanodiamond dispersions, well-dispersed in various organic solvents, such as THF, IPA, MIBK, and toluene. To meet the demand for the utilization of nanodiamonds in various applications, including as a thermal stabilizer or anti-wear agent for lubricating oil, we provide nanodiamond dispersions for a wide range of solvent types. Please contact us if you need any solvents not included in the standard lineup, for which dispersion is required. We will fulfill your request to the extent possible after receiving information about the application and amount required.

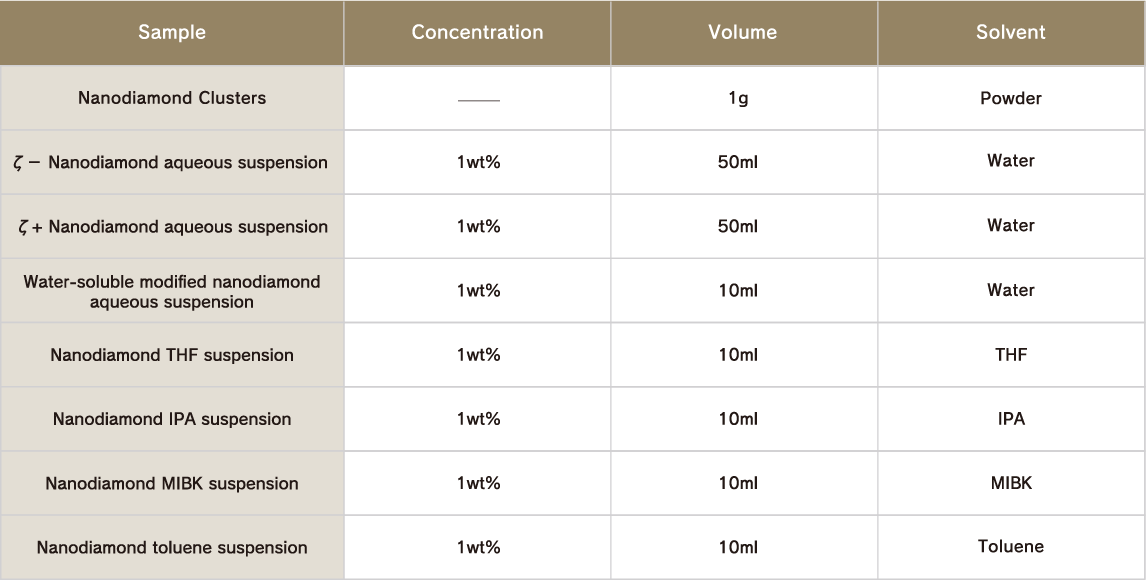

DINNOVARE™ samples
| Sample | Concentration | Volume | Solvent |
|---|---|---|---|
| Nanodiamond Clusters | - | 1g | Powder |
| ζ－Nanodiamond aqueous suspension | 1wt％ | 50ml | Water |
| ζ＋Nanodiamond aqueous suspension | 1wt％ | 50ml | Water |
| Water-soluble modified nanodiamond aqueous suspension | 1wt％ | 10ml | Water |
| Nanodiamond THF suspension | 1wt％ | 10ml | THF |
| Nanodiamond IPA suspension | 1wt％ | 10ml | IPA |
| Nanodiamond MIBK suspension | 1wt％ | 10ml | MIBK |
| Nanodiamond toluene suspension | 1wt％ | 10ml | Toluene |

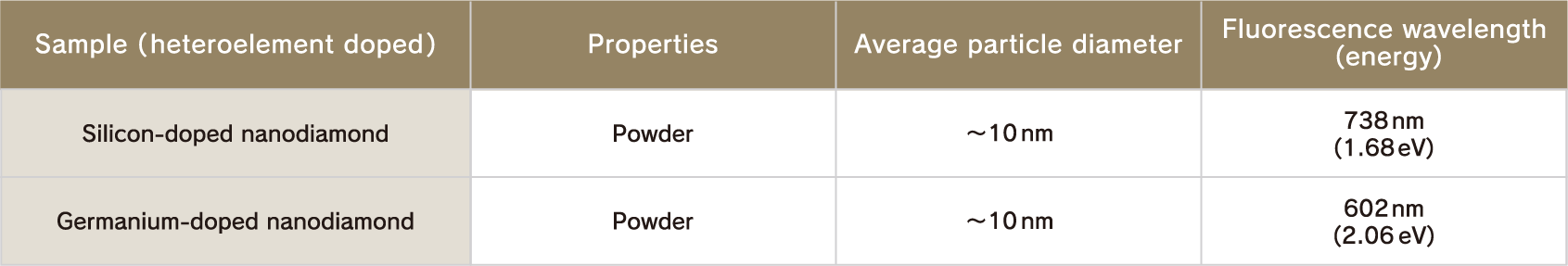

Fluorescent nanodiamond samples
| Sample（heteroelement doped） | Properties | Average particle diameter | Fluorescence wavelength（energy） |
|---|---|---|---|
| Silicon-doped nanodiamond | Powder | ～10nm | 738nm(1.68eV) |
| Germanium-doped nanodiamond | Powder | ～10nm | 602nm(2.06eV) |
